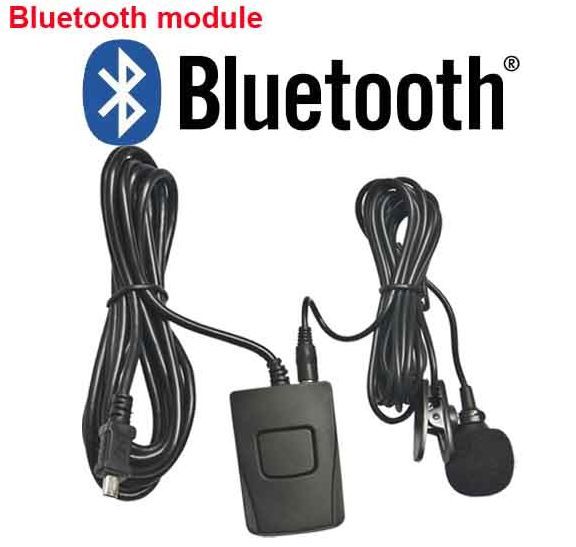

Modul za handsfree, za povezivanje telefona na fabrički auto audio sistem



Funkcije:

1. Povezuje telefon preko punjača

2. Povezuje telefon preko bluetooth za muziku i razgovor.



3. LED indikator veze

4. Automatsko pauziranje muzike kada ima poziv

5. Rastojanje telefona 8metra

6. Podržava glasovno biranje preko bluetooth






Installation Guidance:

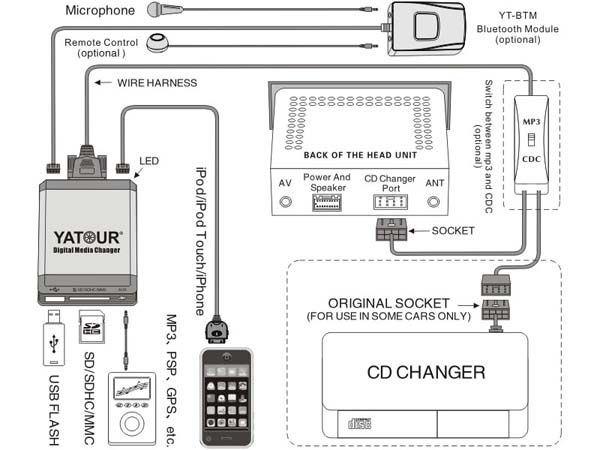

1. After finishing installation for Yatour YT-M05 or YT-M06 or YT-M07, connect YT-BTM to bluetooth port of YT-M05 or YT-M06 or YT-M07. Mount the YT-BTM module away from metal structures as close to the phone as possible.

2. Then connect our microphone to microphone port of YT-BTM. Choose a proper mounting location for the microphone either on the upper part of A-pillar on driver side or near centre rear view mirror or head liner console control panels region. Avoid mounting the microphone by the side windows to eliminate extra noise. Please also avoid mounting behind visor to avoid blocking voice from reaching the microphone.

3. Carefully route the microphone cable down into the dash where the YT-BTM module is installed. Carefully arrange plugs at last.

4. Turn on the car stereo and switch to CD mode, then start to pair your mobile phone with YT-BTM.
